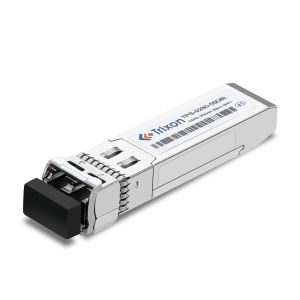

TPS-9280-55DIR 9.95Gbps OC192/STM64 SFP+ Transceiver Module 80km -40℃~+85℃,Industry Temperature,1550nm-DFB,with CDR,
The OC192/STM64 SFP+ Transceiver Module is a Small Form-Factor Pluggable Plus Transceiver Module that is designed for use with Single-Mode Fiber (SMF). It features a Duplex LC Connector Interface and is capable of delivering up to 10km of transmission distance. This transceiver module provides excellent performance in a wide temperature range (-5℃~+70℃). It is an ideal solution for high-speed data transmission in OC192/STM64 networks.
| Parameter | Value |
|---|---|
| Data Rate | 9.95Gbps |
| Wavelength | 1550nm-DFB |
| Distance | 80km |
| Optical Interface | Duplex LC Connector Interface |
| DDM/DOM | Yes |
| Compliant | Compliant With MSA SFP Specification |
| Temperature Range | -40℃~+85℃ |
| Fiber Type | SMF |
| Product Name | OC192/STM64 SFP+ Transceiver Module |
Performance Specifications – Optical
(1550nm EML and APD,80km, OC-192 IR-2/STM S-64.2b)
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Centre Wavelength | λc | 1530 | - | 1565 | nm |
Side Mode | SMSR | 30 | - | - | dB |
| Spectral Width (-20dB) | Δλ | - | - | 0.3 | nm |
| Average Output Power*note13 | Pout | 0 | - | 4 | dBm |
| Extinction Ratio | ER | 9 | - | - | dB |
| Average Power of OFF Transmitter | Pout-off | - | - | -30 | dBm |
| Transmitter Dispersion Penalty | TDP | - | - | 2.0 | dB |
| Optical Return Loss Tolerance | ORLT | - | - | 21 | dB |
| Output Optical Eye | Compliant with OC192/STM64 | ||||
| Receiver | |||||
| Centre Wavelength | λc | 1260 | - | 1570 | nm |
| Receiver Sensitivity*note14 | SEN | - | - | -24 | dBm |
| Receiver Overload | Pmax | -7 | - | - | dBm |
| LOS De-Assert | LOSD | - | - | -22 | dBm |
| LOS Assert | LOSA | -36 | - | - | dBm |
| LOS Hysteresis | LOSH | 0.5 | - | 4 | dB |
Note11: Output is coupled into a 9/125um SMF. The typical value is
+2dBm.
Note12: Measured with a PRBS 231-1 test pattern @9.95Gbps, BER≤10-12.
Long-Haul Telecommunications Networks: The TPS-9280-55DIR module is well-suited for long-haul telecommunications networks that require high-speed and long-distance transmission. It can be used to establish reliable connections between different cities or regions, enabling voice, data, and video communication over extensive distances.
Fiber Backbone Networks: The module can be deployed in fiber backbone networks to provide high-capacity and long-distance connectivity between different network nodes. It allows for efficient data transmission and interconnection of various network elements, such as routers, switches, or data centers.
Internet Service Providers (ISPs): ISPs can utilize the TPS-9280-55DIR module to expand their network coverage and offer high-speed internet services to customers in remote or distant areas. The module enables ISPs to bridge long distances and deliver reliable broadband connectivity to underserved regions.
Data Centers Interconnect: The module can be used to interconnect multiple data centers that are geographically dispersed. It facilitates fast and secure data transfer between data centers, supporting activities such as data replication, backup, or disaster recovery.
Enterprise Wide-Area Networks (WANs): The TPS-9280-55DIR module can be deployed in enterprise WANs to connect different office locations or branches that are separated by long distances. It enables high-speed data transmission, facilitating efficient collaboration and communication between geographically distributed teams.
Research and Education Networks: The module can be utilized in research and education networks that require high-speed connectivity between universities, research institutions, or laboratories. It supports the transfer of large datasets, scientific collaboration, and remote learning applications.
Connector Type: The module may come with a specific connector type, such as LC or SC. If you require a different connector type to match your existing infrastructure, you can discuss the possibility of customizing the connector type with the manufacturer.
Compatibility: If you have compatibility concerns with your existing equipment or network setup, you can discuss with the manufacturer to ensure that the customized module will be compatible with your specific environment. This may involve adjusting parameters or configurations to ensure seamless integration.
Temperature Range: The standard temperature range for the TPS-9280-55DIR module is -40°C to +85°C. If you require a different temperature range to match your specific operational environment, you can discuss your requirements with the manufacturer. They may offer customization options to accommodate a wider or narrower temperature range.
Power Budget: If you have specific power budget requirements for your network, you can discuss with the manufacturer to determine if the module can be customized to meet those requirements. This may involve adjusting the power consumption or sensitivity of the module.
Labeling and Branding: If you require specific labeling or branding on the module, such as custom logos or serial numbers, you can discuss these customization options with the manufacturer. They may be able to accommodate your branding requirements.
Testing and Certification: If you require additional testing or certification for the module to meet specific industry standards or compliance requirements, you can discuss these customization needs with the manufacturer. They may be able to provide tailored testing or certification processes.
Our team of experts provide technical support and services for SFP+
Transceiver Modules. We offer in-depth support for all aspects of
the module, from installation and debugging to troubleshooting and
maintenance.
We can provide guidance on the best use of the module, as well as
advice on the best suited product for your needs. Our team can also
provide assistance in understanding the complexities of the product
and offer advice on the most cost-effective solutions.
In addition, we can provide help with any issues that may arise
during the use of the module. We provide direct and rapid support
to any problems that may arise. Our team is dedicated to providing
the best customer service to ensure a smooth and efficient
operation of the module.
We also provide comprehensive support for the product, from the
initial purchase to the eventual upgrade or replacement. We strive
to provide a solution that meets your needs and offers the best
value for money.
SFP+ Transceiver Module is packaged in an ESD bag and shipped in a
cardboard box to ensure safe delivery.
Reference Datasheet File code: DS090016
|
|
