| Brand Name : | Trixon |

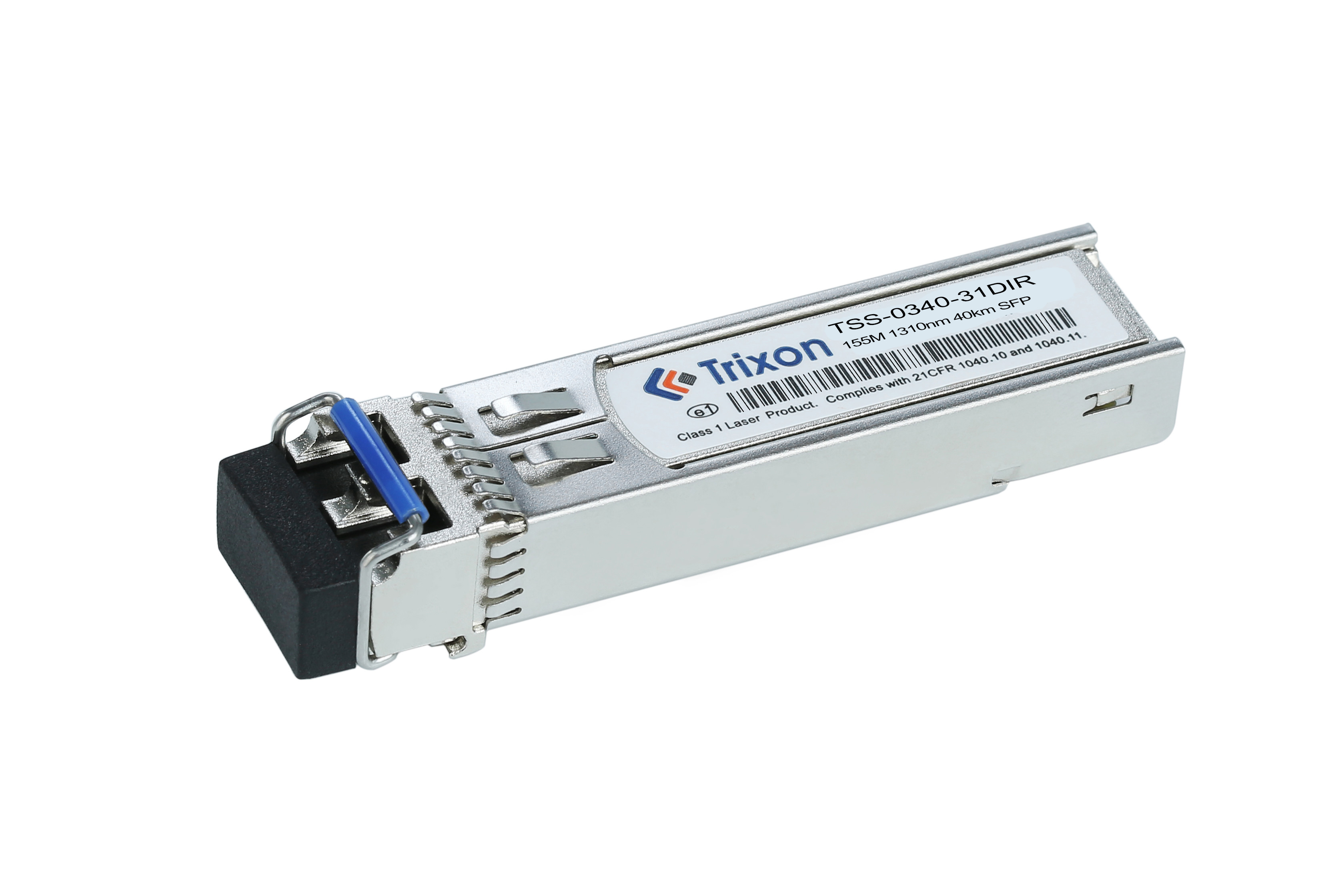

| Model Number : | TSS-0340-31DIR |
| Certification : | UL,TUV,FCC,CE,ROHS |
| Payment Terms : | L/C D/P |
| Price : | Negotiable |
| Delivery Time : | Negotiable |
| Supply Ability : | Negotiable |
SFP Transceiver Module is a compact, hot-pluggable transceiver module designed for use in 1310nm 1.25Gbps SFP LR Duplex LC applications. It supports a single 3.3V power supply and TTL logic interface. It is with a temperature range of -40℃ ~+85℃ and a transmission distance up to 40km. The SFP Transceiver Module is compliant with SFF-8472 MSA and supports DDM (Digital Diagnostic Monitoring) function. It is suitable for SMF (Single Mode Fiber) and provides a cost-effective way to add fiber connectivity to your networking system.
| Parameters | Description |
|---|---|
| Fiber Type | Single Mode Fiber (SMF) |
| Distance | 40km |
| Pluggable | Hot Pluggable |
| Compliant | Compatible With SFF-8472 |
| Laser | 1310nm-FP |
| Product Name | SDH STM-1/SONET OC-3 SFP Transceiver |
| Temperature Range | -40℃ ~+85℃ |
| Data Rate | Operating Data Rate Up To 155.52 Mbps |
| DDMI | YES |
| Connector Type | Duplex LC Connector Interface |
(1310nm FP and PIN, 40km)
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | |
| Transmitter | |||||||
| Centre Wavelength | λc | 1280 | 1310 | 1340 | nm | ||
| Spectral Width*Note4 | ∆λ | 3 | nm | FP-LD | |||
| Average Output Power | POUT | -5 | 0 | dBm | |||
| Extinction Ratio | ER | 10 | dB | ||||
| Average Power of OFF Transmitter | POFF | -45 | dBm | ||||
| Output Optical Eye | Compliant with eye mask Telcordia GR-253-CORE and ITU-T G.957 | ||||||
| Receiver | |||||||
| Centre Wavelength | λc | 1200 | 1650 | nm | |||
| Sensitivity*Note5 | PIN | -34 | dBm | ||||
| Receiver Overload | Overload | -10 | dBm | ||||
| Optical Return Loss | 12 | dB | |||||
| LOS Assert | LOSA | -45 | dBm | ||||
| LOS De-Assert | LOSD | -35 | dBm | ||||
| LOS Hysteresis | 0.5 | 4 | dB | ||||
The Trixon TSS-0340-31DIR is a 1.25G SFP transceiver module for a wide range of applications. It features a Duplex LC connector interface, 1310nm laser, and SMF fiber type. It is hot pluggable and has an operating data rate of up to 155.52 Mbps. This product is ideal for data centers and communication networks that require high-speed, reliable data transmission over long distances. It is designed to provide superior performance and reliability, making it an ideal solution for a variety of applications, including Ethernet, Fibre Channel, and Gigabit Ethernet. The Trixon TSS-0340-31DIR is designed for long-term use and is backed by a limited lifetime warranty.
Data transfer rate: 622Mbps data transfer rate.
Transmission distance: Supports 15km transmission distance.
Light source type: 1310nm FP (Fabry-Perot) laser is used as the light source.
Fiber type: Supports SMF (Single-Mode Fiber) single-mode fiber.
Connector type: Uses standard SFP connector, compatible with the device’s fiber optic interface.
Operating temperature range: The operating temperature range is -5℃ to +70℃.
Based on these customization requirements, the supplier or manufacturer can design and manufacture customized optical module transmitters according to your needs. They will ensure that the product meets your requirements such as data transfer rate, transmission distance, light source type, fiber type, connector type and operating temperature range.
Please note that specific customized solutions may also involve other details, such as product size, power consumption, electrical interface, compatibility, etc. You can further communicate with the optical module supplier or manufacturer to discuss your customization needs in detail and ensure that the final product meets your expectations and application requirements.
We provide technical support and services for SFP Transceiver Module. Our service includes:
SFP transceiver modules should be packaged and shipped in a manner that protects them from external shock, vibration, and contamination.
Reference Datasheet File code:DS110024
|
|
